ESC Single Pilotix BLS 3-8S 100A burst 120A

Product detailed description

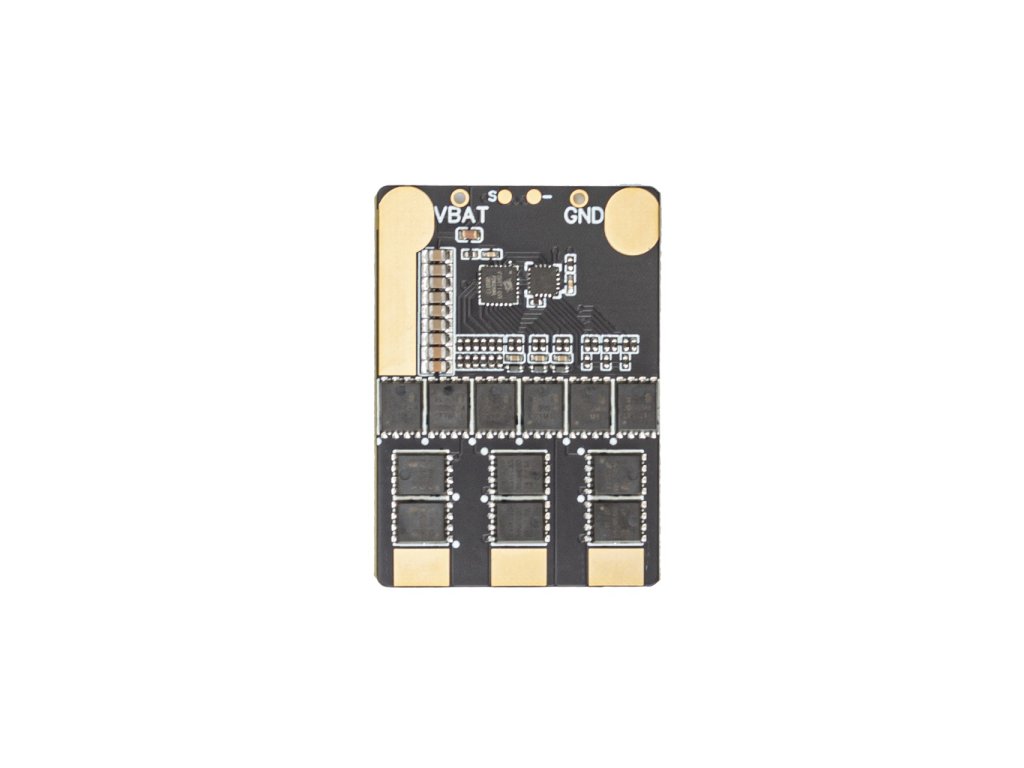

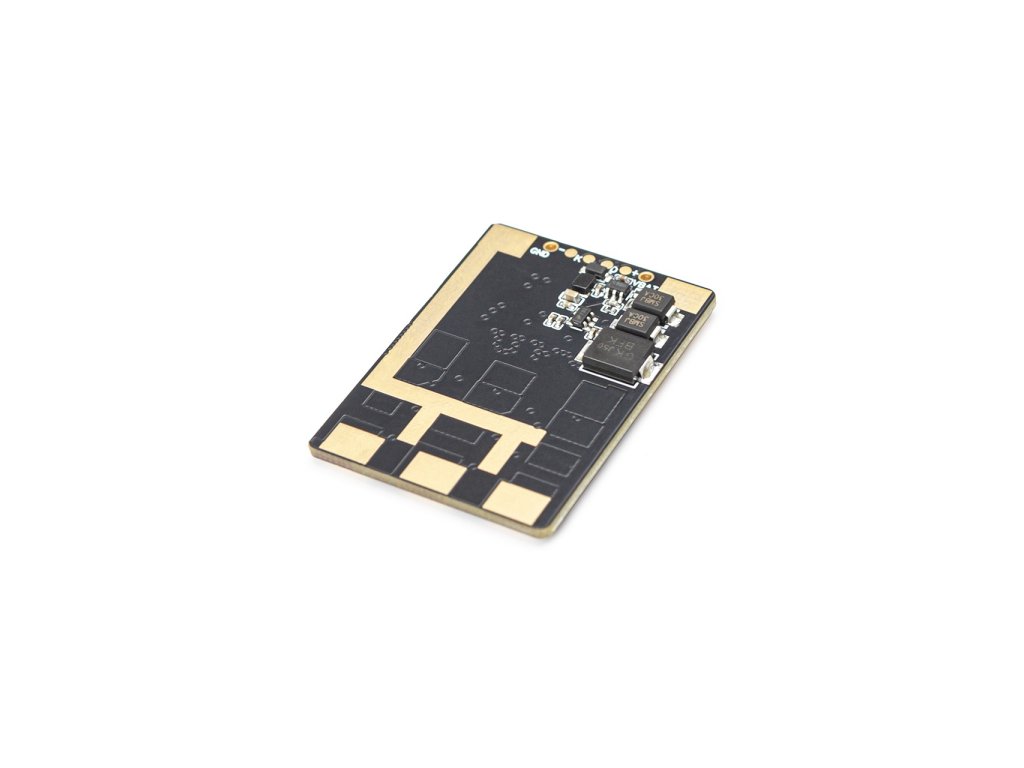

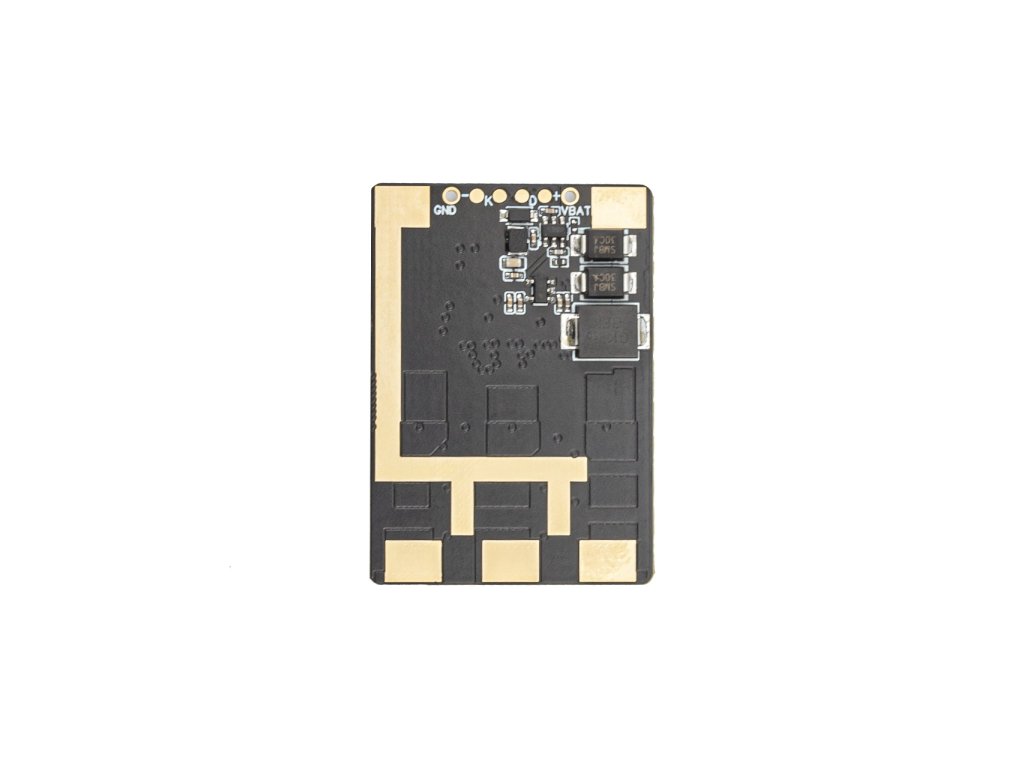

ESC Single Pilotix BLS 3-8S 100A burst 120A

The Pilotix BLS 3-8S 100A Single ESC is a high-performance electronic speed controller designed for demanding drone and RC model applications. It handles up to 100A continuous current and 120A burst current, making it suitable for heavy-duty usage with 3-8S LiPo batteries (11.1-33.6V). With a focus on reliability and precision, this ESC supports various ESC protocols such as DShot150/300/600, MultiShot, and OneShot PWM.

Key Specifications:

• Input Voltage: 3-8S (11.1-33.6V)
• Continuous Current: 100A
• Burst Current: 120A
• Continuous Power: 2500W
• Peak Power: 3000W
• ESC Firmware: BLheli_S 16.7 / Bluejay 0.19.2
• Dimensions: 45x32mm
• PCB: 6-layer, 3 OZ copper thickness
• Working Temperature: -40℃ to 90℃
• Motor Compatibility: 4312/4214/4218/5330 or similar models
• BLS/Bluejay Configuration Tool: ESC Configurator

Important Notes:

1. Ensure adequate heat dissipation during high current operation.
2. For models with 13-inch or larger propellers, use a capacitor rated at 35V 1500µF or higher.
3. For large motors, set the ESC's power ramp parameter to a lower value, such as 6-7x.

Package Includes:

• 1x ESC Single Pilotix BLS 3-8S 100A (burst 120A)
