ESC 4in1 Pilotix 100A 8S Improved Version
Code: 6456Product detailed description

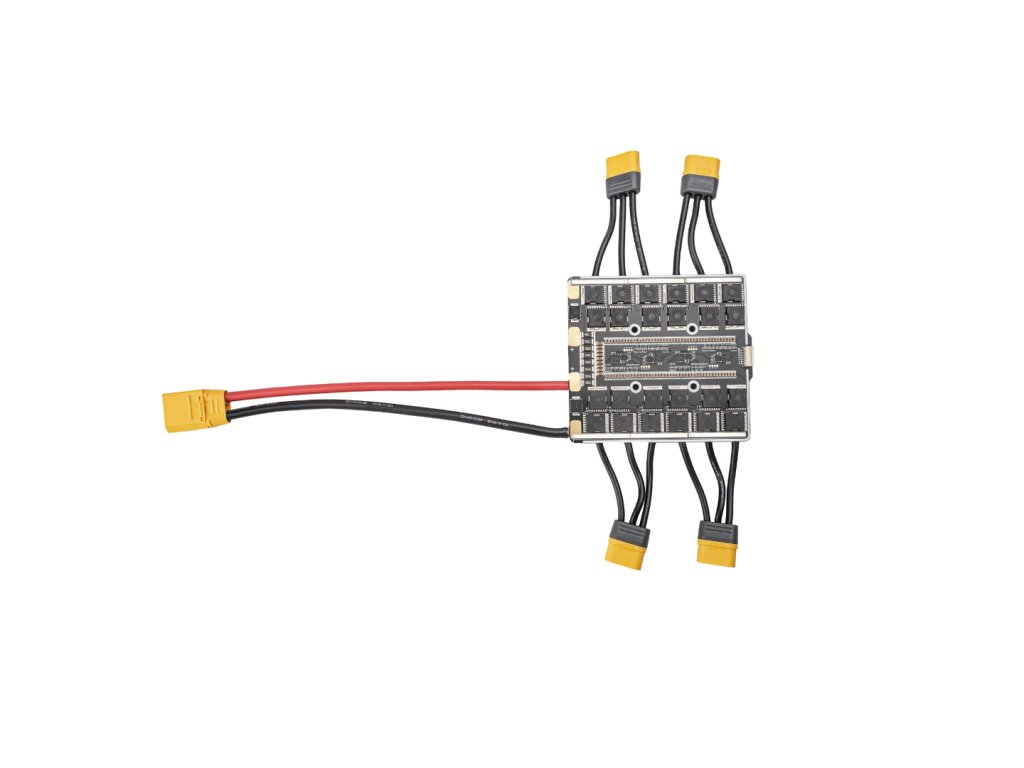

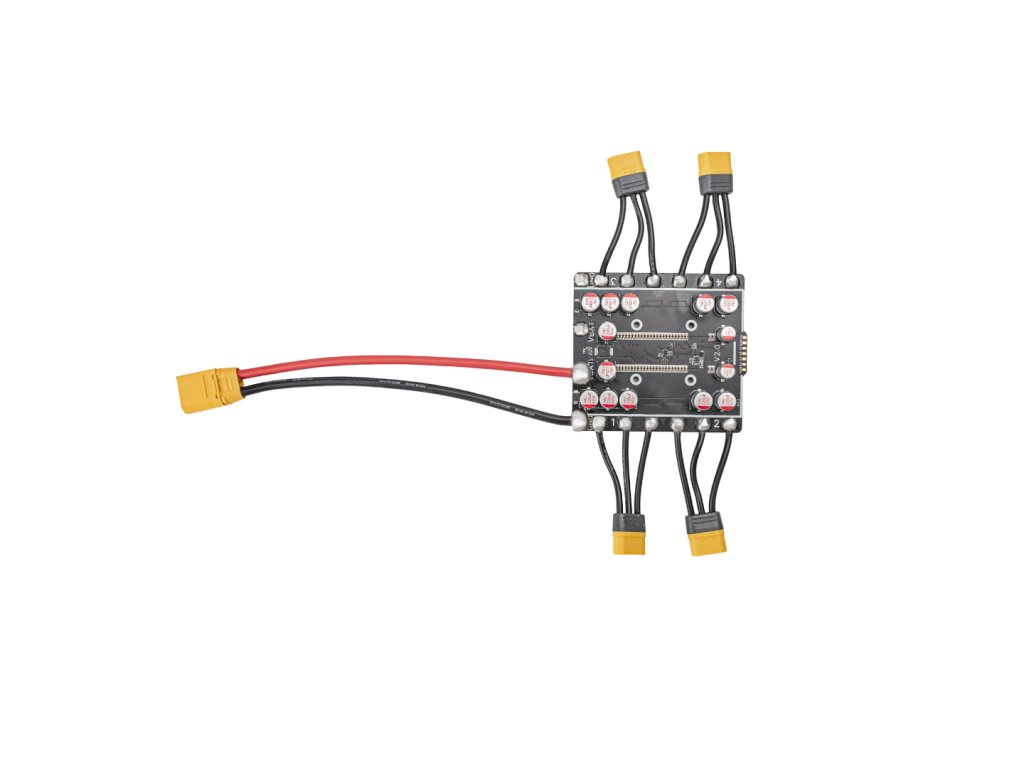

ESC 4in1 Pilotix 100A 8S Improved Version
The Pilotix 100A 8S 4-in-1 ESC is a high-performance electronic speed controller designed for demanding drone applications. Supporting up to 8S LiPo input, it delivers a continuous 100A per channel with a peak current of 120A, ensuring stable and efficient power distribution.
This improved version features enhanced durability and efficiency, making it suitable for freestyle, racing, and industrial UAVs. With BLHeli_S/Bluejay firmware and support for multiple signal protocols, including PWM, Oneshot, DShot150/300/600, and MultiShot, it offers broad compatibility with modern flight controllers. The integrated current meter provides real-time power monitoring for better tuning and battery management.
Specifications:
Current Meter: Yes
Continuous Current: 100A
Peak Current: 120A
Input Voltage: 3~8S LiPo
Firmware: BLHeli_S / Bluejay
Supported Protocols: PWM, Oneshot, DShot150/300/600, MultiShot
Mounting Pattern: 30.5 × 30.5 mm (M3)
Size: 89 × 100 mm
Package Includes:
1 × ESC 4in1 Pilotix 100A 8S Improved Version
Additional parameters
| Category: | ESC |
|---|---|
| Weight: | 0.06 kg |
| ESC Type: | 4-in-1 |
| Mounting Size: | 30.5x30.5mm |
| Power Supply: | 8S |
| Continuous Current: | 100А |
