FC iFlight BLITZ F745

Product detailed description

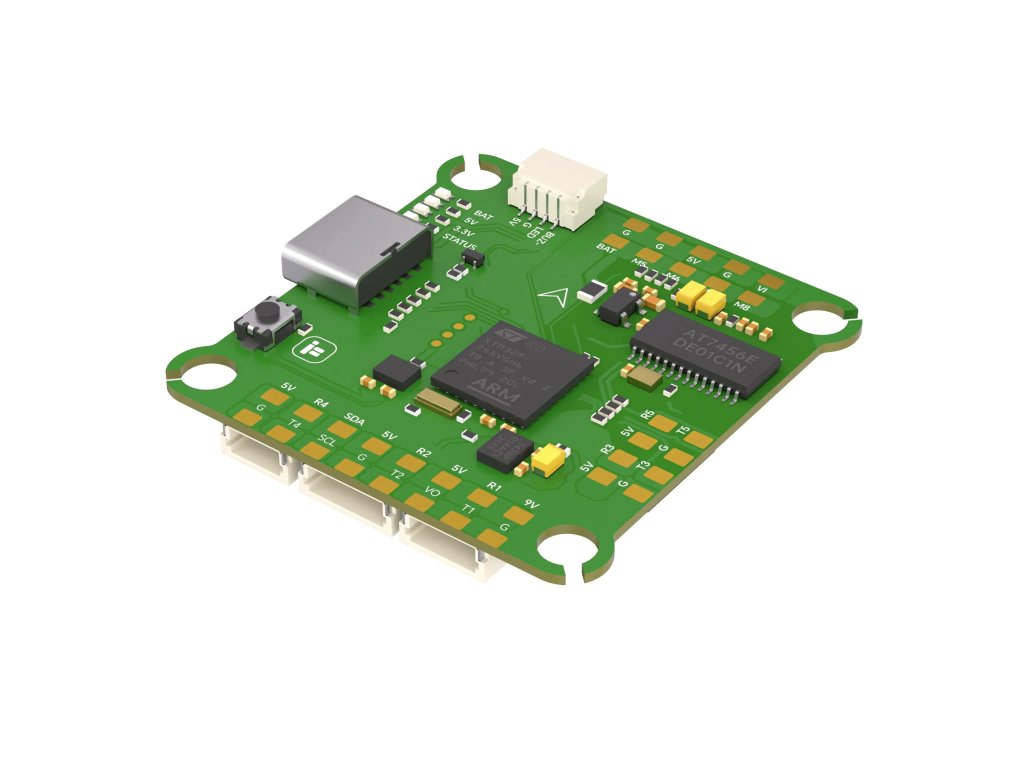

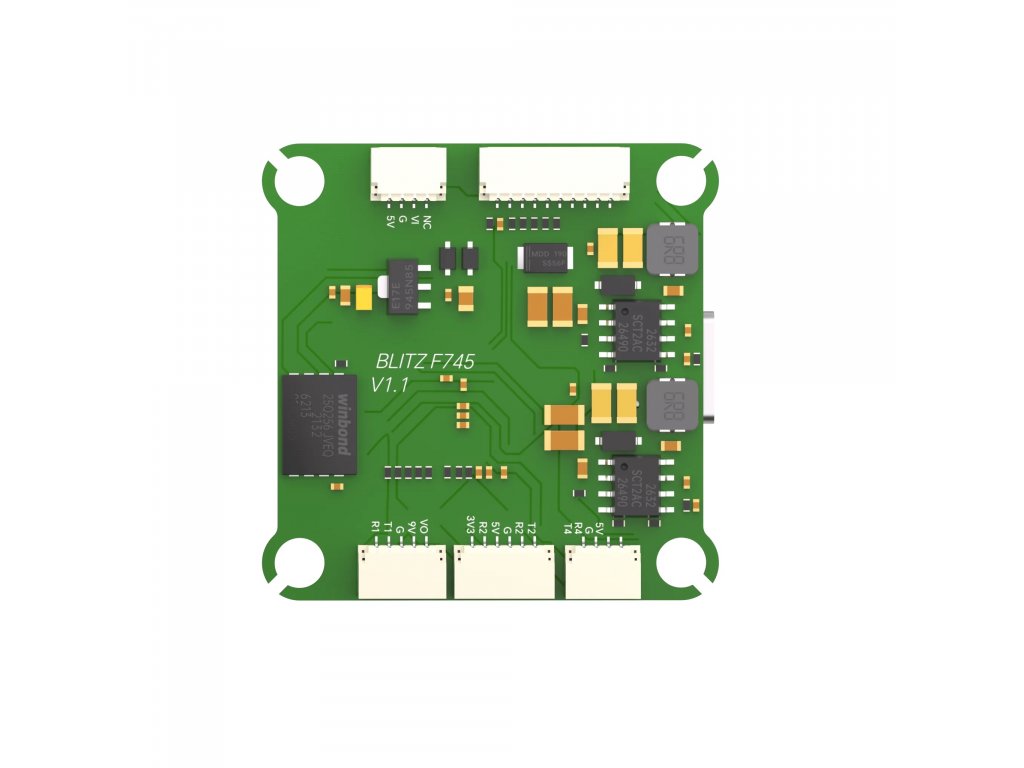

BLITZ F745 Flight Controller

Features:

- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- Support Betaflight, INAV, Ardupilot firmware

Specifications:

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: arduplane_with_bl

Wiring Suggestion:

UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

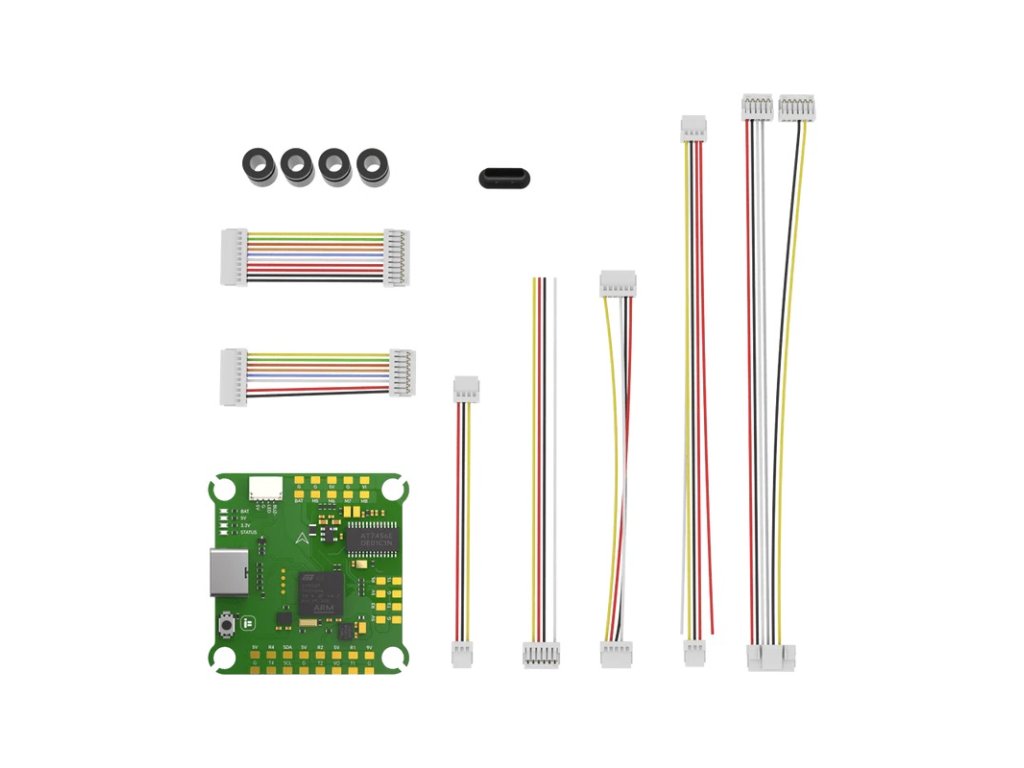

Package Includes
1 x BLITZ F745 Flight Controller
