BEC Module Pilotix 5A UBEC

Product detailed description

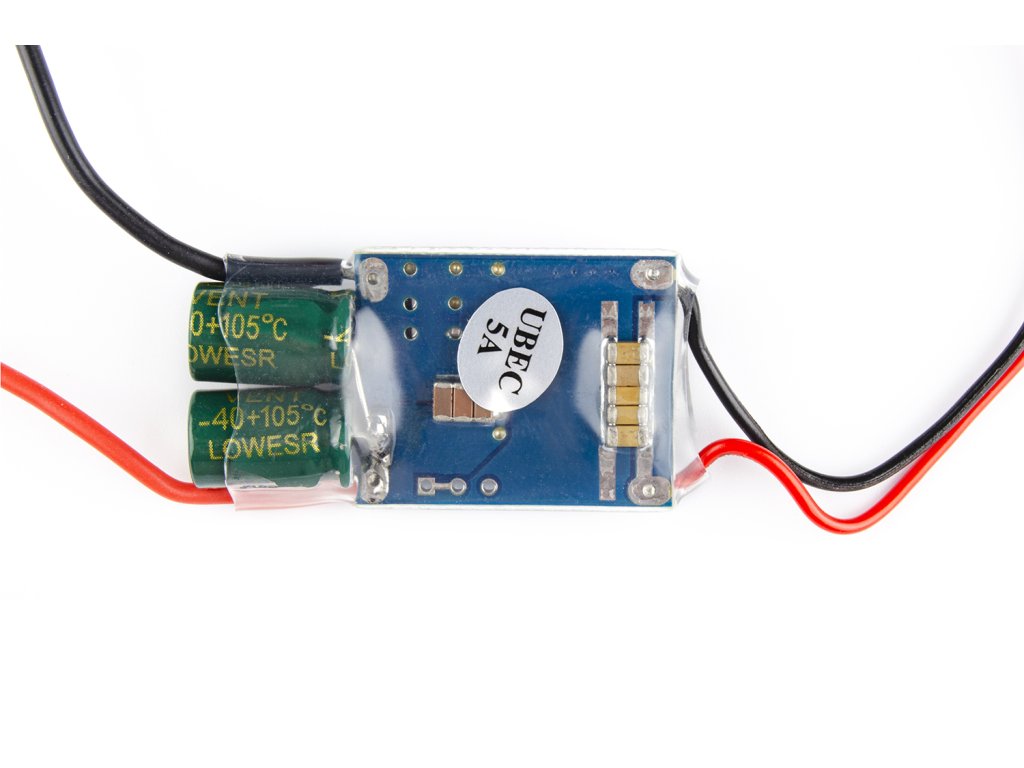

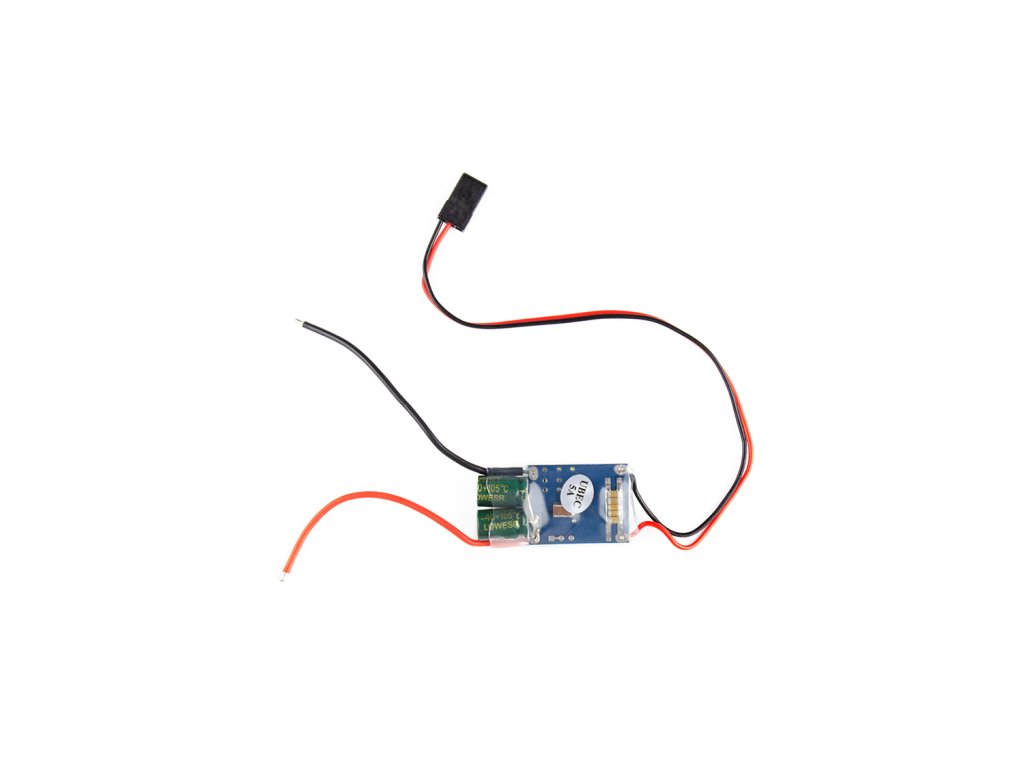

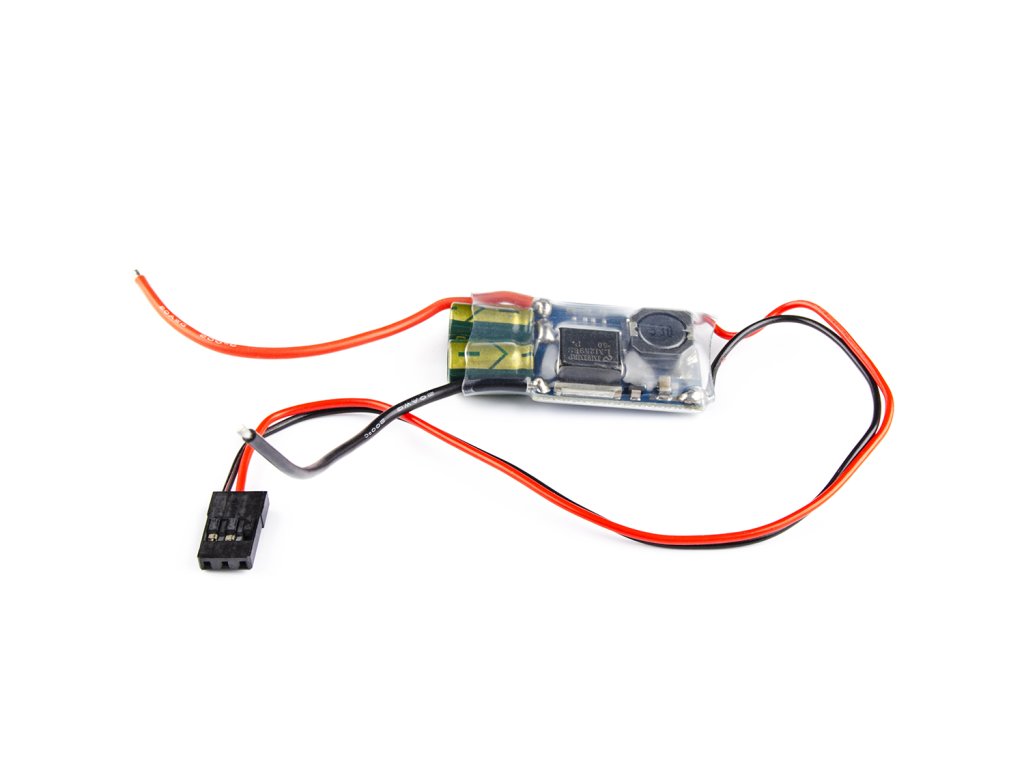

BEC Module Pilotix 5A UBEC

The Pilotix 5A UBEC Module is a universal voltage regulator for unmanned systems that provides stable power for onboard electronics. It converts high battery voltage (2 to 7S) to a stable 5V DC voltage that can be used to power receivers, servos, and other system components. Compared to linear regulator BECs, switching power supply BECs offer significant advantages, especially when using 3S (11.1V) or higher battery configurations. They reduce heat dissipation and improve overall efficiency.

Features:

- Designed with a switching power supply structure, operating at a 300kHz main control frequency, featuring overcurrent and over-temperature protection, and achieving up to 92% efficiency.
- Compact and lightweight design.
- Shielded electronic components to significantly reduce electromagnetic interference and ensure stable receiver operation.
- Reverse polarity protection—if the power is connected incorrectly, the UBEC will not be damaged.

Specifications:

Input Voltage: 2S-7S (7.4V - 29.4V)
BEC Output: 5.25V ±0.5V (Max ~5.75V), 5A continuous, 6A peak (20 seconds)
Dimensions: 41 x 21 x 7 mm
Weight: 15g

Package Includes:
1x BEC Module Pilotix 5A UBEC
