Battery CaddxFPV Protos 2S1P 840mAh 15C

Product detailed description

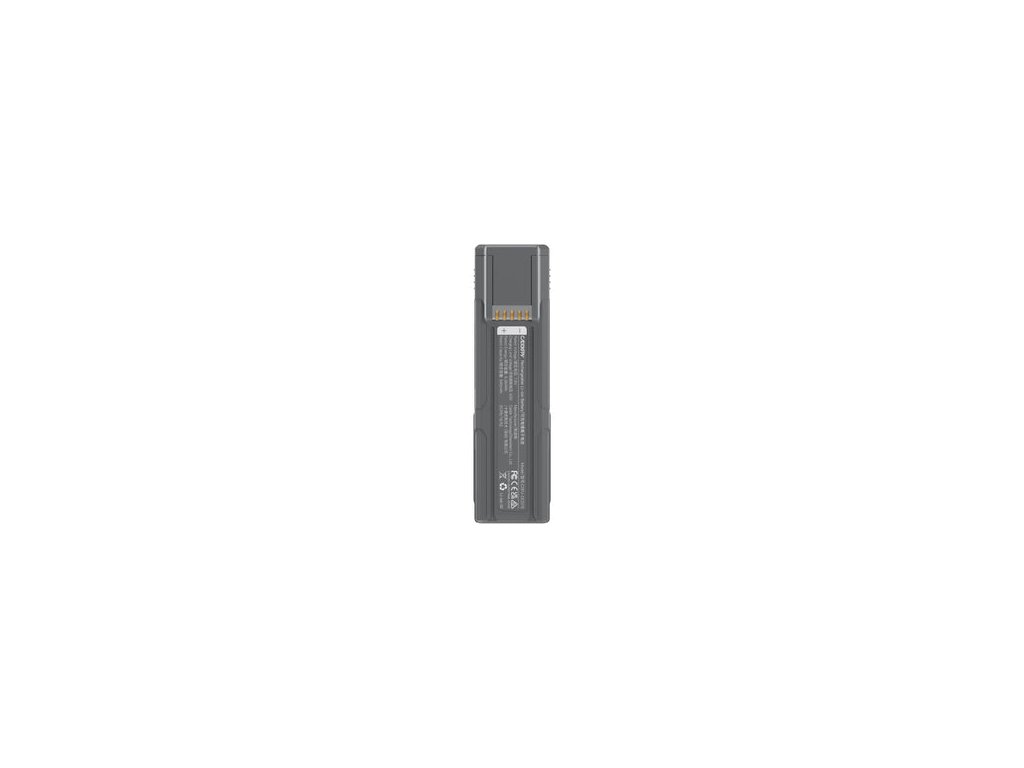

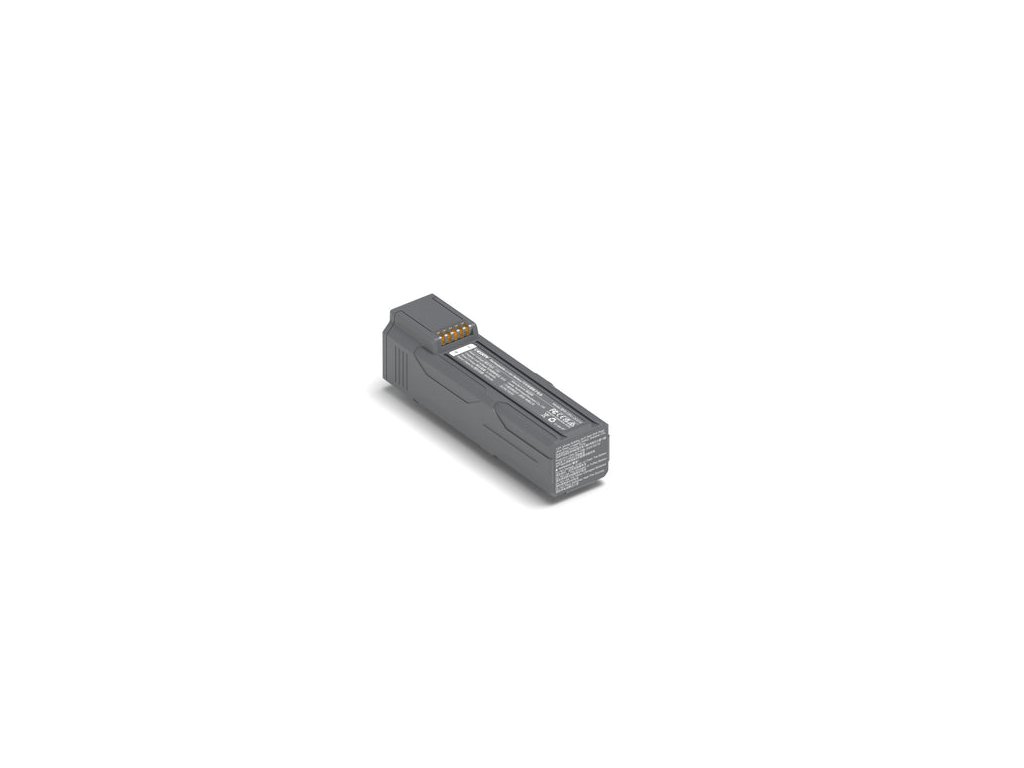

Battery CaddxFPV Protos 2S

The CaddxFPV Protos 2S battery is a dedicated power solution designed exclusively for the CADDXFPV PROTOS drone. Built with high-quality lithium-ion cells, it delivers stable output, efficient performance, and fast charging in a compact and lightweight form, ensuring reliable power for every flight.

Features:
- High-quality Li-ion cells provide stable voltage and consistent power delivery.
- Compact and lightweight design helps maintain balanced flight performance.
- Fast charging capability reduces downtime between flights.
- Built-in protection mechanism helps prevent over-discharge and extends battery lifespan.
- Reliable power output suitable for smooth and efficient flight sessions.

Specification:
Model: C0PJ-DC016
FCC IC: 2BHG9-C0PJ-DC016
Battery Type: Li-ion (Lithium-ion Battery)
Capacity: 840 mAh
Configuration: 2S1P (2 cells in series, 1 in parallel)
Discharge Rate: 15C
Maximum Power: 6.384 Wh
Voltage Range: 6.80 V – 8.70 V
Max Charging Voltage: 8.5 V
Charging Method: 2S charger
Charging Time: ≤ 20 minutes
Protection Mechanism: Battery lock protection activates when a single cell drops below 2.8 V (charging required to reactivate)
Dimensions: 77.5x24x21mm
Weight: 41.9 g ± 0.5 g

Package includes:
1x CaddxFPV Protos 2S 840mAh Li-ion Battery
