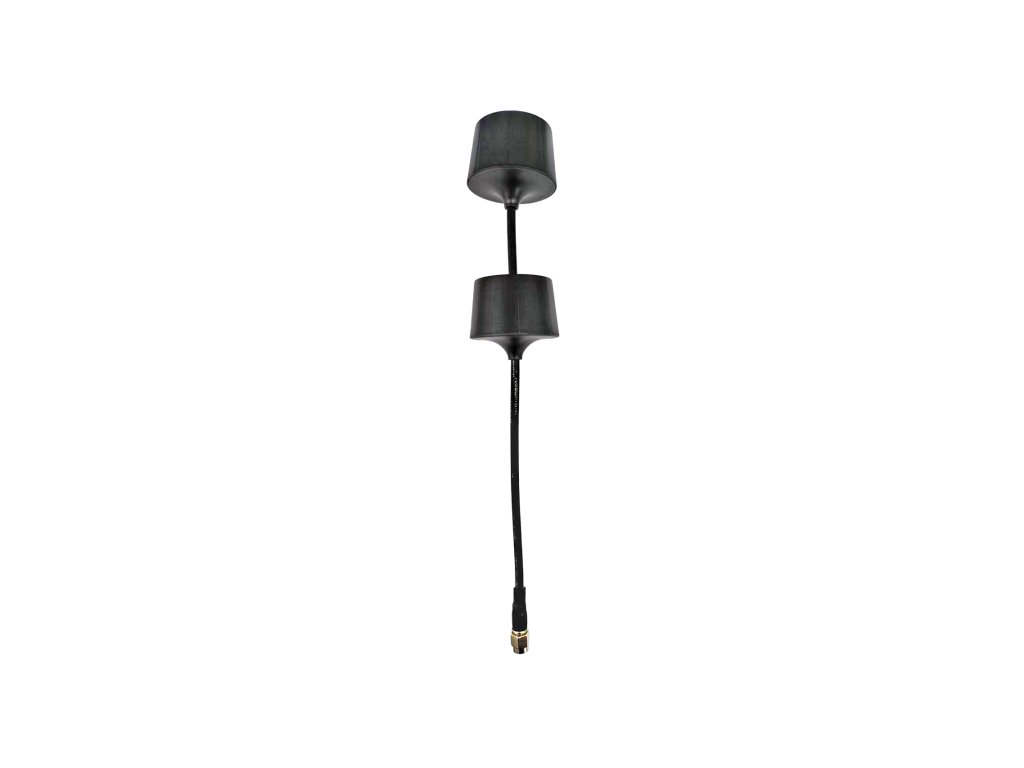

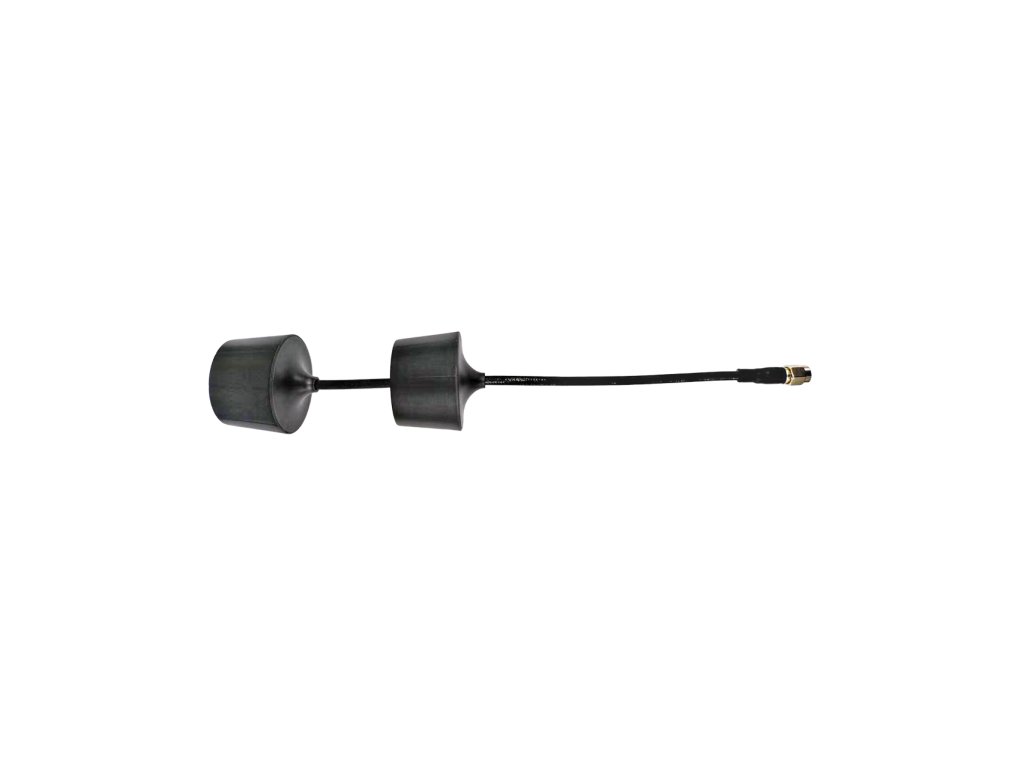

Antenna Pilotix 4.9-6G dual RHCP SMA

Product detailed description

Antenna Pilotix 4.9-6G dual RHCP SMA

The Pilotix 4.9–6G Dual RHCP SMA antenna is a high-performance circularly polarized antenna designed for FPV systems operating across the wide 4.8–6.2 GHz frequency range. Engineered for stable signal transmission, low loss, and reliable performance, it is an excellent choice for drones, ground stations, video transmitters, and receivers. Its durable ABS construction and SMA connector ensure compatibility and long-term reliability.

Features:
- Wide 4800–6200 MHz frequency range, supporting all major 5.8GHz FPV systems.
- RHCP polarization for improved signal penetration and interference resistance.
- Low VSWR ≤ 2.0 and Return Loss ≤ –10 dB for efficient, low-loss signal performance.
- Durable and lightweight ABS housing, ideal for both lightweight drones and ground setups.
- SMA connector for broad compatibility across FPV equipment.
- Lightweight 29 g design without compromising strength.

Specifications:
Frequency: 4800-6200MHz
Impedance(Ω): 50 ±10
Gain(dBi): 3.5±1
ReTurnLoss(dB): ≤-10
VSWR: ≤2.0
Polarization: RHCP
Connector Type: SMA
Antenna Base: ABS
Operating Temp: -20℃-+60℃
Storage Temp: -20℃-+70℃
Weight: 29g

Package includes:
1x Antenna Pilotix 4.9-6G dual RHCP SMA
