AIO FC iFlight BLITZ D25 HD F7 (With OSD)

Product detailed description

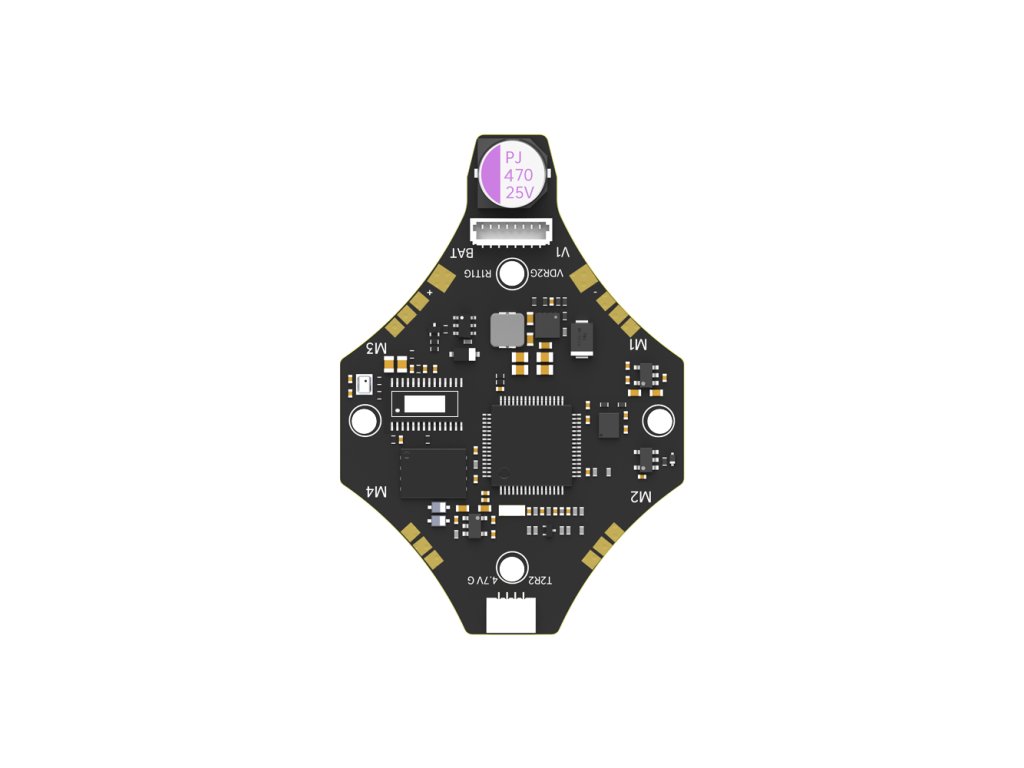

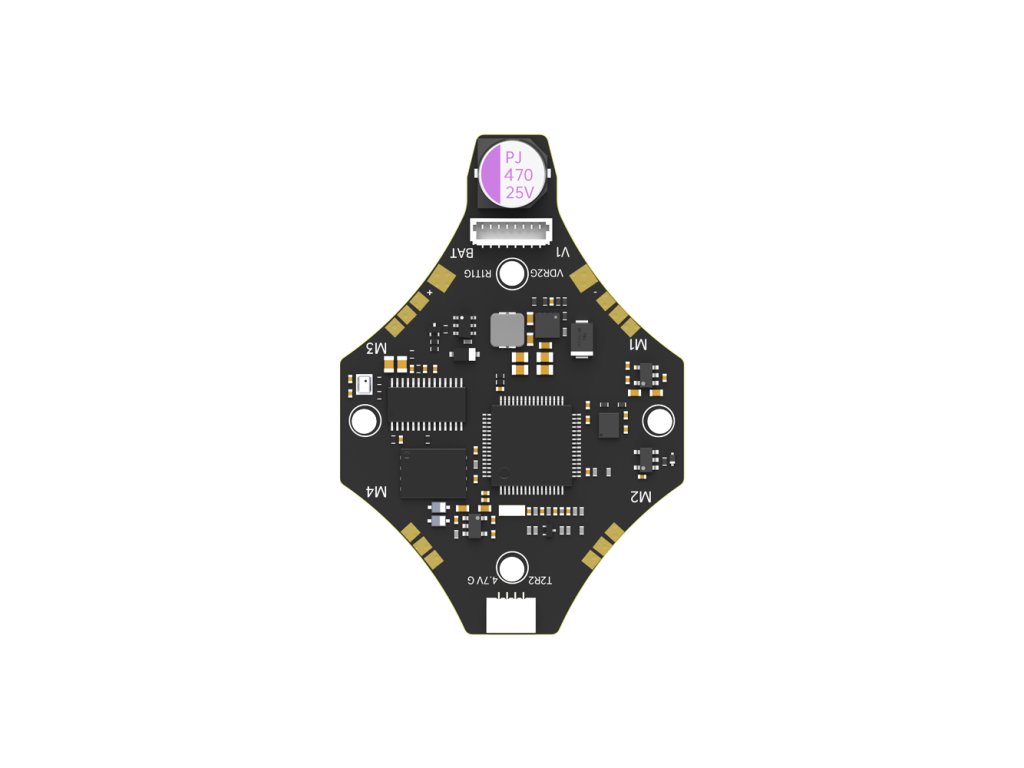

AIO FC iFlight BLITZ D25 HD F7 (With OSD)

The iFlight BLITZ D25 HD F7 is a compact, all-in-one flight controller engineered specifically for the Defender 25 drone. Powered by an STM32F722 MCU and equipped with a high-performance ICM42688 gyro and DPS310 barometer, it ensures stable, responsive flight. This board includes a 32MB blackbox for flight data logging, 5V 2.5A BEC output, WS2812 LED support, buzzer, and full DJI compatibility with pass-through connection for O3 and Vista/Polar units. Weighing just 12.8g, it is ideal for lightweight builds where space and efficiency matter. Designed for future-proof firmware upgrades like Betaflight or Emuflight, it's a smart choice for pro-level FPV setups.

FC Specifications:

Pass-through DJI O3 and Caddx Vista/Polar Connector
MCU: STM32F722
Gyro: ICM42688
OSD: NO
Blackbox: 32MB Onboard Flash
Gyro: DPS310
Weight: 12.8g±0.2g
MCU: STM32F722
Gyro: ICM42688
Blackbox: 32MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: SH1.0 to Type-C adapter
OSD: HD VTX version
FC Firmware: IFLIGHT_BLITZ_F722_X1
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Input voltage: 2-4S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported

ESC Specifications:

ESC MCU: STM32G071
Driver: FD6288
Input voltage: 2-4S Support LIHV battery
Output current: 20A, peak value 30A (10 seconds)
ESC firmware: IFLIGHT_BLITZ_G071_01
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: Yes（PCB routed, set UART6 for telemetry）
Bidirectional DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Package includes:

1 x Defender 25 BLITZ F7 AIO
1 x Capacitor 470uF/35V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
