AIO FC GEPRC GEP-TAKER G4 35A
Code: GP106088Product detailed description

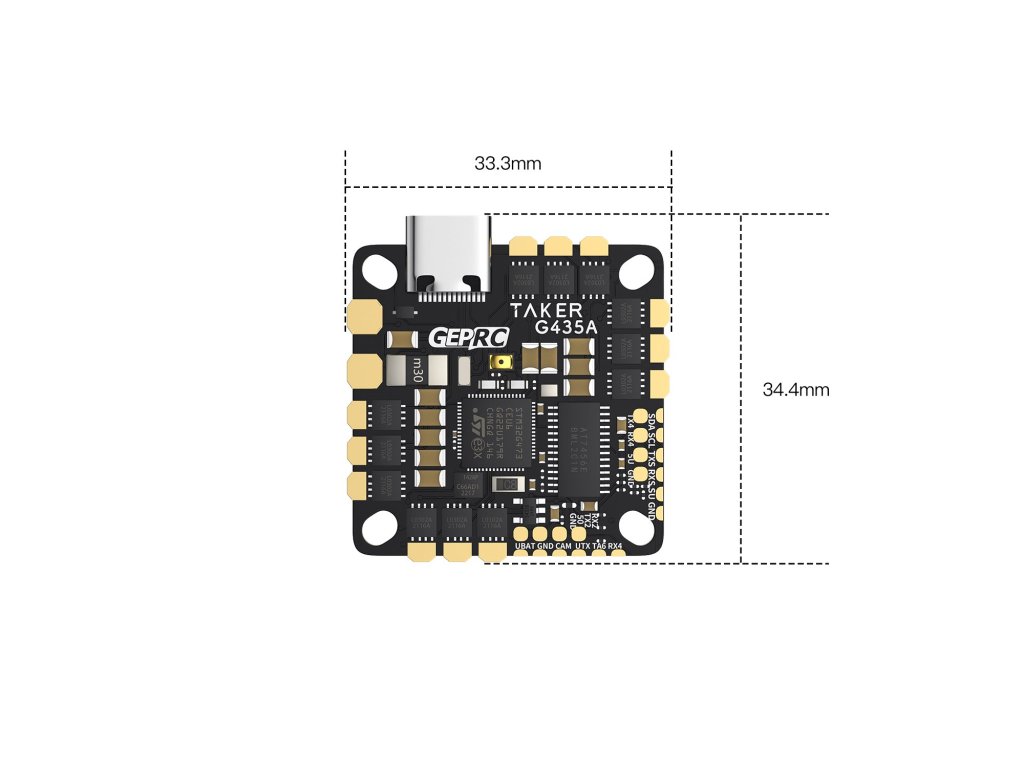

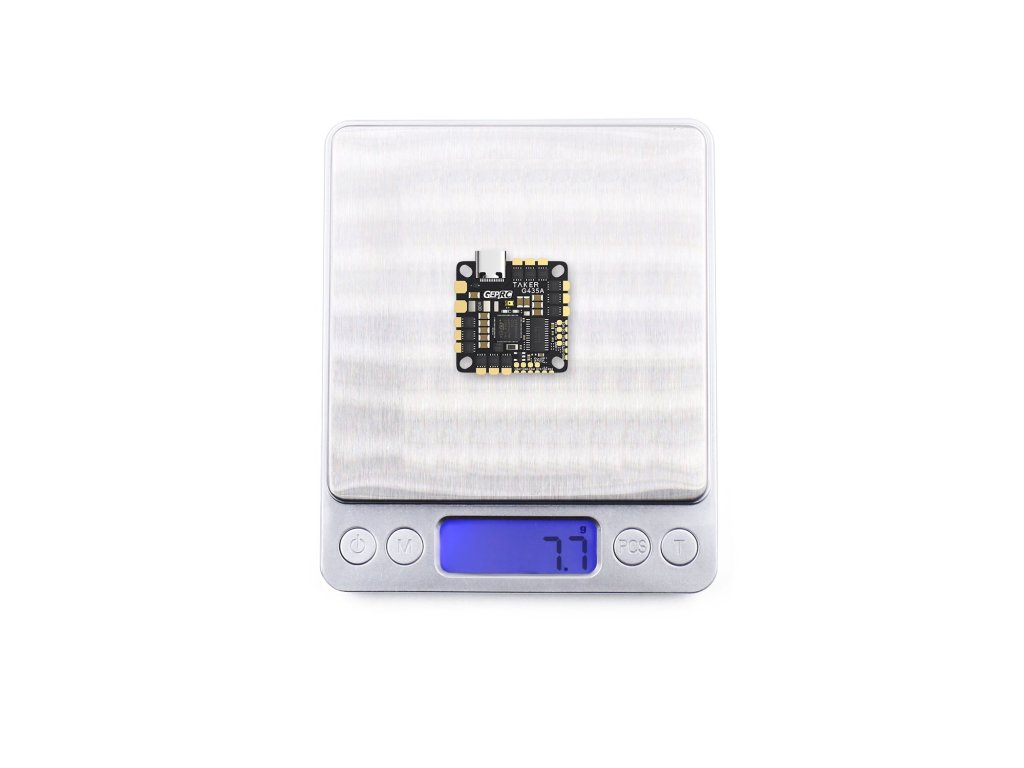

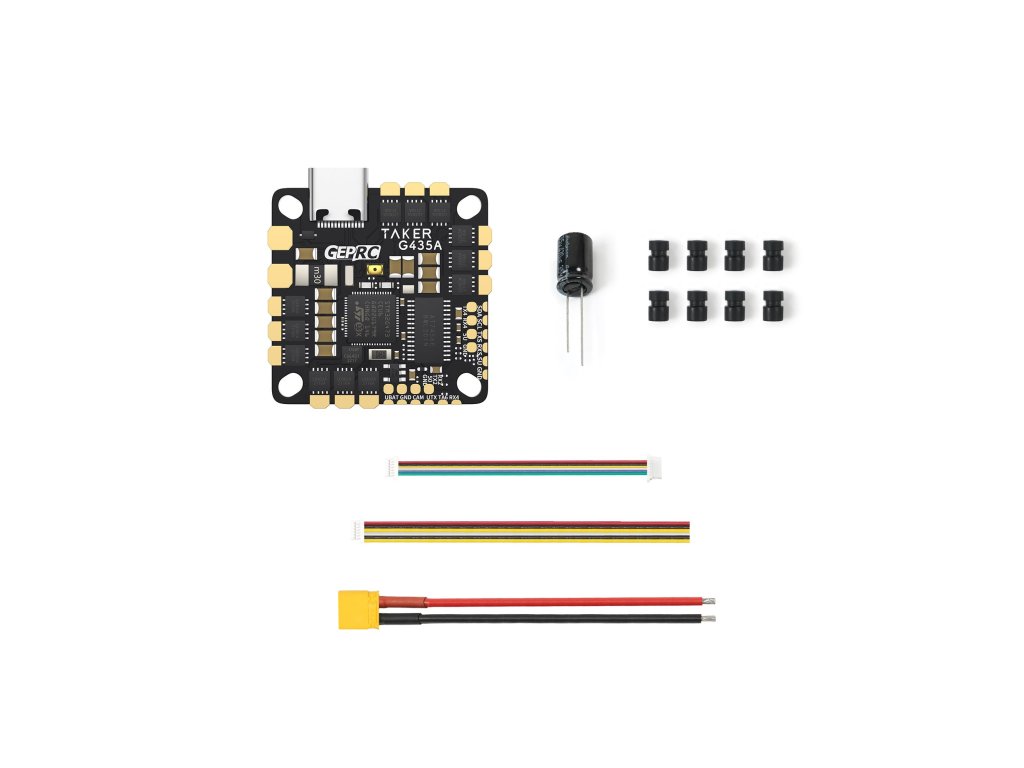

AIO FC GEPRC GEP-TAKER G4 35A AIO TAKER G4 35A is a newly developed AIO flight control by GEPRC. It adopts the G473 main control and has more redundant computing power. In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames. Feature: - Compact size and compatible mounting holes make installation convenient. - Light weight only 7.7g. - G473 main control, 170MHz operating frequency, abundant computing power. - Upgraded Type-c USB for better versatility. Specifications: Model Name: TAKER G4 35A AIO MCU: STM32G473CEU6 IMU: ICM 42688-P Firmware target: TAKERG4AIO OSD: Betaflight OSD w/ AT7456Ev Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5 Buzzer: YES LED: YES USB: Type-c USB BEC output: 5V@3A ESC MCU: BB21F16G Continuous Current: 35A Burst Current: 45A(5″) lnput Voltage: 2-4S (LIPO Battery) Supports: Dshot600, Oneshot, Multishot Current meter: YES Target: J -H -15 Size: 33.4×34.4mm Board Install hole: 25.5-26.5mm, Φ3.05mm Weight: 7.7g Package Includes: 1 x GEP-TAKER G4 35A AIO 1 x Cable Set
