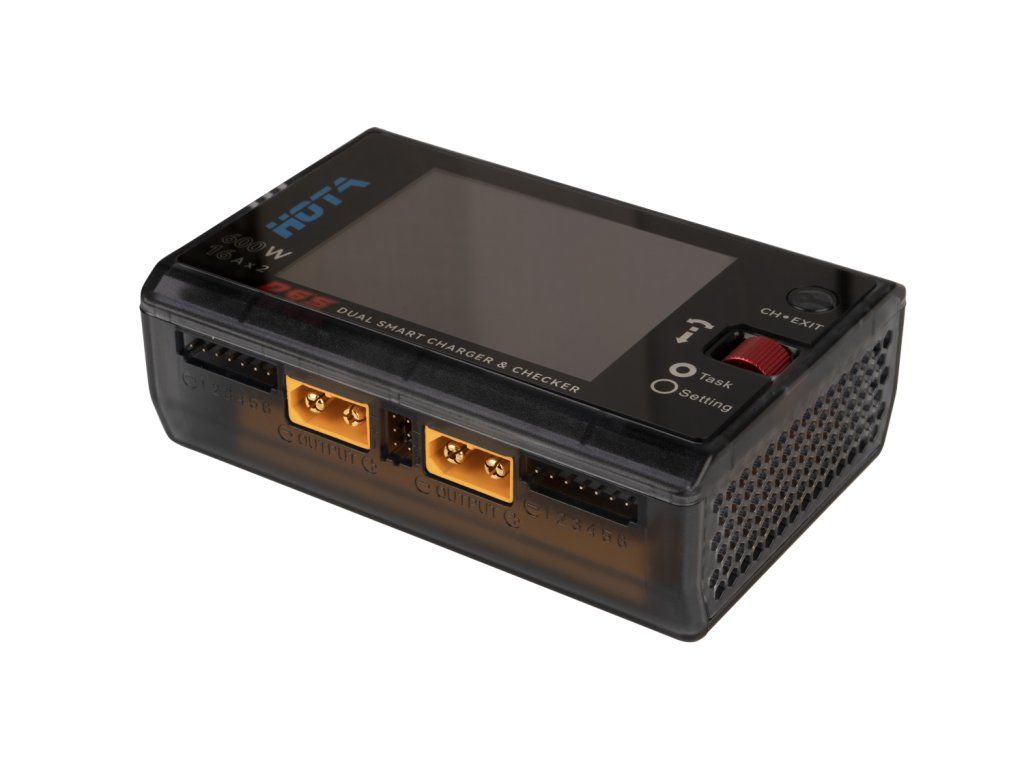

Charger HOTA D6S 2x300W 16A 1-6S Dual AC/DC

Product detailed description

Charger HOTA D6S 2x300W 2x16A 1-6S Dual AC/DC

The HOTA D6S is a compact and highly capable dual-channel smart charger designed for FPV pilots, RC hobbyists, and professional users who need powerful charging and advanced testing functions in one device. Featuring dual independent outputs, broad battery compatibility, integrated power supply mode, and signal testing capabilities, the D6S delivers exceptional versatility for both workshop and field use. Its bright IPS display and lightweight portable design make operation simple and convenient.

Features:
- Dual independent charging channels for simultaneously charging different batteries
- High-efficiency charging and discharging performance in a compact lightweight body
- Supports a wide range of battery chemistries including LiPo, LiHV, Li-ion, LiFe, LTO, NiMH, NiZn, and Pb batteries
- IPS color display with clear interface and intuitive navigation
- Built-in balancing system for stable and accurate battery charging
- Internal and external discharge support for battery maintenance and cycling
- Integrated power supply function with adjustable voltage and current output
- Advanced RC signal measuring and output functions including PWM, PPM, and SBUS support
- ESC testing capability for RC and FPV electronics setup
- USB-A output for firmware upgrades and powering external devices
- Compact portable form factor ideal for field charging and bench use
- Efficient cooling design for stable operation during high-power charging sessions

Specifications:
Input Voltage: DC 7.0–28.0V @ Max 30A
Charge Current: 0.1–16Ax2
Charge Power: 300Wx2
External Recycle Discharge Power: 300Wx2
Internal Discharge Power: 12Wx2
Discharge Current: 0.1–3A
Balance Current: 800mA @ 4.2V
Supported Battery Types: Smart Battery / LiHV / LiPo / LiFe / Li-ion / Lixx / LTO / NiZn 1–6S, Pb 1–10S, Eneloop / NiMH 1–16S
USB-A Output: 5V / 2.1A
Display: 2.8" IPS Color Screen (320×240, 260000 Colors)
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
PWM Input Measurement: 880–2200us @ 20–400Hz
PPM Input Measurement: 880–2200usx8CH @ 20–50Hz
SBUS Input Measurement: 880–2200usx16CH @ 20–100Hz
Voltage Measurement: 1.0–5.0V @ 1–6S
Internal Resistance Measurement: 1–99mR @ 1–6S
ESC Test Function: 0.5–15A @ 1–28V Max 300W
PWM Output: 500–2500us @ 20–1000Hz
PPM Output: 880–2200usx8CH @ 50Hz
SBUS Output: 880–2200usx16CH @ 74Hz
Power Supply Output: 0.5–16A @ 1–28V (CC+CV Mode)
Dimensions: 101x69x35mm
Net Weight: Approx. 235g

Package includes:
1x HOTA D6S Dual Smart Charger
1x DC Input Cable
