AIO FC BetaFPV Matrix 1S Brushless G4 5 IN 1 V2 (Solder-free)

Product detailed description

AIO FC BetaFPV Matrix 1S Brushless G4 5IN1 V2 (Solder-free)

The BetaFPV Matrix 1S 5IN1 V2 Solder-free Flight Controller is a next-generation all-in-one solution built for demanding 1S whoop pilots. It combines high-output power, advanced electronics, and crash-resistant design in a compact, ready-to-install format. Designed for reliability and performance, it’s the ideal core for powerful micro builds with minimal setup time.

Features:
- True all-in-one design integrating FC, ESC, RX, OSD, and VTX
- Solder-free setup for fast, clean, and beginner-friendly installation
- High-current ESC for strong and responsive motor performance
- Reinforced PCB and shock-absorbing mounting for improved crash resistance
- Optimized component layout for enhanced durability and reliability
- Powerful processor and modern gyro for precise control and smooth flight
- Built-in ELRS receiver and high-power VTX for long-range capability

Specifications:
FC
MCU: STM32G473CEU6
Gyro: ICM42688P
Blackbox memory: 16MB
Sensor: Voltage & Current
BEC: 5V, Max 3A
UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
BetaFlight OSD: AT7456E
ESC: 12A continuous
RX:Serial ELRS 2.4GHz (V3.4.3)
VTX: 5.8GHz 48 channels, Max 400mW
FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
USB port: SH1.0-4Pin
Motor connector: JST1.25
Battery connector: BT2.0
Mounting hole size: 26x26mm

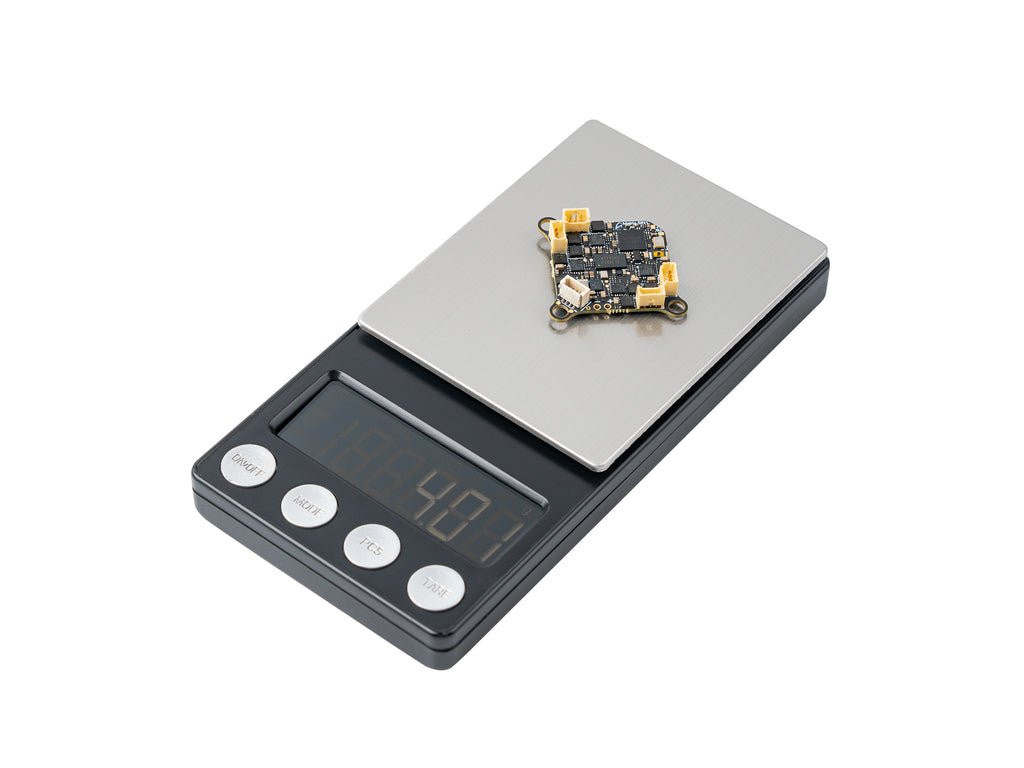

Weight: 4.1±0.1g

ESC
Power input: 1S Only
Current: 12A continuous, 18A peak
ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
Digital signal protocol: DShot300, DShot600

VTX
Output power: 25/100/200/400/PIT
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.0
Modulation type: FM
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel carrier error: ±1.5dB
Antenna port: 50 Ω
Operating temperature: -10℃~80℃
Weight (VTX antenna excluded): 4.13g

Package Includes:
1x AIO FC BetaFPV Matrix 1S Brushless G4 5IN1 V2
1x Type-C to SH1.0 Adapter
1x SH1.0-4Pin Adapter Cable
1x 5.8G Antenna
4x M1.2x4 Self-tapping Screws
4x M1.4x5 Self-tapping Screws
4x Shock Absorbing Balls
